I have mentioned on here before how I have recently purchased an Oculus (aka Meta) Quest 2 VR headset, and with it created my first (free) WebXR game Barrel River 2. Now, as work begins on the v0.20.0 update to My Colony 2, I have begun adding initial WebXR immersive virtual reality support to Scroll3D, my custom game engine that powers not only My Colony 2, but other titles such as My Empire and the 3D modeling tool Voxel Paint. Support is still in it's infancy and will not be complete by the time v0.20.0 ships, but I have included a video below that demonstrated walking through a MC2 settlement in VR mode.


Obviously on the headset it is full 3D and you can look all around yourself. So far, it's not perfect. I had to turn the graphics quality in the engine settings all the way low to get this fairly large colony to run properly (on a small settlement, I was able to keep all settings on high). What is demonstrated above is the game being played using the "man on the street" view mode that was introduced in v0.19.0, but the player on an Oculus, Google Cardboard, Windows Mixed Reality, or other VR headset will be able to play the regular city-building mode of My Colony 2 in VR as well. It's actually pretty neat to be hovering "up in the sky" and looking down upon your settlement, using the VR controls to fly around the world and place structures!

Of course, VR is a cool feature, but not entirely necessary in a game like My Colony 2, but having the capabilities baked in to the Scroll3D engine will open opportunities to future projects. For instance, I am thinking about a Gone Rogue 2, where you can play the normal "classic" top down way, or you can actually explore the dungeons in first person immersive VR mode, fighting enemies up close and personal. A Scroll3D based remake of Epic Adventure could also basically become like a VR version of Minecraft. There are a lot of different possibilities, but I mostly want to make sure that Scroll3D titles can always be played on any device, whether it's PC, mobile, TV, or now VR.

VR support is basically a sideline addition to the forthcoming v0.20.0 update, which should be hitting all platforms next week. I am primarily focused on cleaning up and fixing some of the issues related to the massive changes to the modding system from the last update, along with a few UI improvements and the obligatory addition of new structures, etc. But little by little over the coming months, VR support will be refined and improved to the point where MC2 is 100% fully playable from an immersive VR mode on a supported headset, or even a cheapo Amazon headset + bluetooth gamepad in Google Cardboard mode.

So anyway, just wanted to share the VR future that will be fully hitting MC2 later this year, along with the possibilities it brings to other Scroll3D related projects. I will leave you with a few other screenshots I captured from within the Oculus headset of a MC2 water world. Enjoy!








#mycolony2 #barrelriver2 #scroll3d #vr #webxr
3mo ago
A few months ago, I introduced the new "Blockhead Token" class to My Tokens, which added a new Minecraft-character like style of Token to the My Tokens ecosystem:


These Tokens are neat, but in order to be more useful in coming games, there will need to be other objects in their worlds that they can interact with, armor/items they can hold and use, similar styled enemies, etc. Since a lot of these models are going to be used in the Scroll3D engine, world objects can certainly be created using Voxel Paint or even Blender, as Scroll3D can already handle models created with either of those platforms.

Those formats are perfectly fine, however I wanted something a bit more customizable and basic that would allow for super-fast creation of models, as well as models that can be defined/generated completely in code and modified at runtime. So for this purpose, coming soon to the Scroll3D ecosystem is a new model class, simply called the Basic Model, with an extremely easy to use model editor, the Basic Modeler.

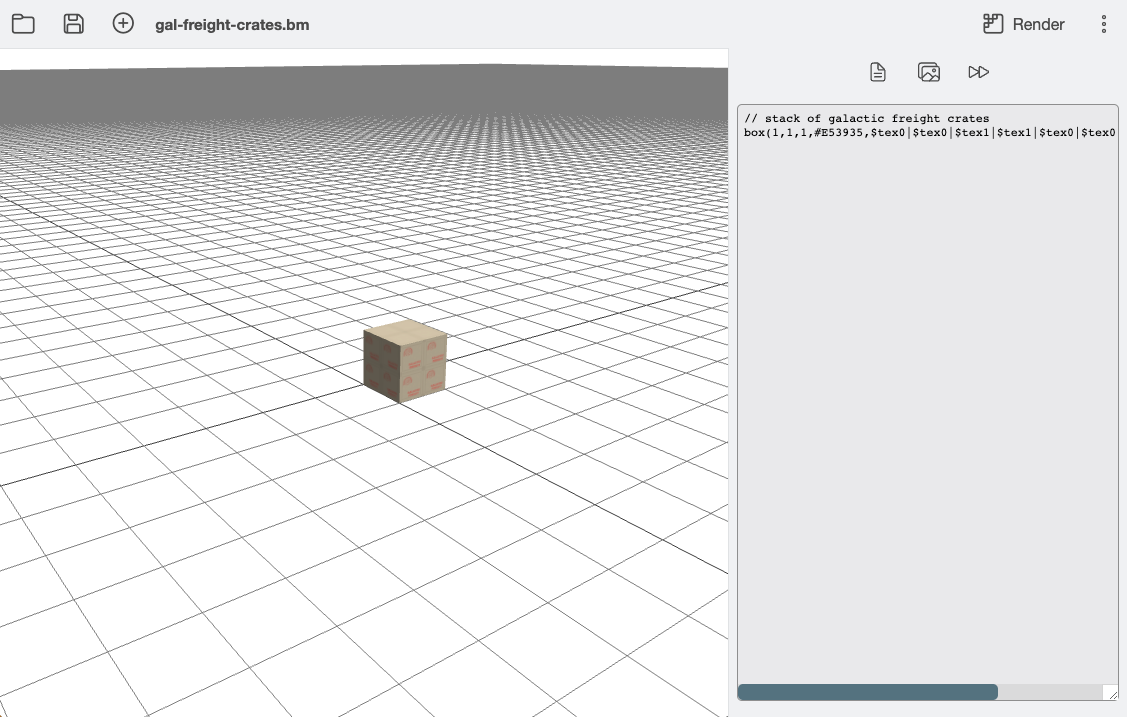

I got the idea for the Basic Modeler from OpenSCAD. Instead of using an interactive editor like in Voxel Paint, you define the model using a scripting language, and the model is rendered and compiled based on your script. Once the scripting language is more complete, I will be posting a complete reference to it here on the forum.

The purpose for this style of model creation is to be able to dynamically create models in code at game runtime. Consider a procedurally generated type of game (like a Gone Rogue 2 or a Level Up 2 perhaps?), where there are base weapon classes, but with countless types of modifications to the base. These would be able to be defined in code, instead of making a different model for each variation.

The image above just shows a super basic model (a recreation of the Blockhead Token, but holding a low-poly hammer), but the Basic Model spec is going to support the entire range of 3D shapes beyond simple boxes, including cones, cylinders, spheres, and more. Models are made by combining variations of these basic shapes into something more complex.

To help with rotations and animations, shapes can also joined into groups, and transforms/rotations can be done on groups of objects.

In addition to defining models dynamically in code, the Basic Modeler app will allow you to export creations in the form of a new Basic Model file. The layout of a Basic Model file is going to consist of three parts, the Object Script, the Texture Array, and the Animation Array.

The Object Script will be a plain text script containing the base code for the model. This is the only required section for a Basic Mode, and many models will be created using nothing but the Object Script. I will be posting a full reference to the object scripting language once I have it more finalized.

The Texture Array is going to contain an array of compressed texture data, in the event that a user wants to embed texture files into the model. Textures are not required, and a model can simply use object script defined colors instead (as in the image above), but of course sometimes a texture is necessary (a Blockhead Token would require a texture array). To simplify this, the Basic Modeler app will allow you to easily create and assign textures without writing any code.

Finally, the Animation Array is a named array of animation scripts that can be called by the engine. The animation scripting language will be like the object model scripting language, but only accept transform/translate/rotate/state-change type commands. A model can have multiple animation scripts, such as a "walk" script, "crouch," "attack," and so on. The game engine would then be able to tell the model which animation script it should be playing.

A lot of the work for the Basic Model concept was already baked into Scroll3D from the Blockhead Token update to My Tokens, and so the initial code for this format is based off of that. You can see the Blockhead Tokens in action with the latest build of My Tokens. Going forward, the current Blockhead Token implementation is going to be replaced to use the more advanced and expansive Basic Model system.

Support for the Basic Model system is going to be built right into Scroll3D, but I will also be creating a general model loader for three.js, which will allow anybody to easily use Basic Model files in their animations in a web project.

I still have a bit of work to do on the system, and it will be slow going over Christmas week as family takes precedent to work, but if you want to putz around with what I have so far, you can head over to the beta of the modeler app here:

https://www.apewebapps.com/basic-modeler/?beta=1

To get you started with the scripting language, here is some code to create the model from the picture above:

// blockhead token generator
// holding a "stick" to show grouping

// translate limb geometry for animation pivot point
geotranslate(0,-1.5,0);

$legRight = box(1,3,1,#1E88E5);
$legRight > position(-0.5,3,0);

$legLeft = box(1,3,1,#1E88E5);
$legLeft > position(0.5,3,0);

// start a new object group

$rightArmGroup = startgroup();

$armRight = box(1,3,1,#E53935);

$stick = box(0.5,5,0.5,#FFC107);
$stick > position(0,-2.6,3.2);
$stick > rotate(90,0,0);

$stickHead = box(0.75,0.75,3,#FF9800);
$stickHead > position(0,-2.6,6);
$stickHead > rotate(90,0,0);

endgroup();

$rightArmGroup > position(-1.5,6,0);

$armLeft = box(1,3,1,#E53935);
$armLeft > position(1.5,6,0);

// reset translation
geotranslate(0,0,0);

$body = box(2,3,1,#4CAF50);
$body > position(0,4.5,0);

$head = box(2,2,2,#FFCCBC);
$head > position(0,7,0);

// some simple example rotations
$legLeft > rotate(25,0,0);
$legRight > rotate(-25,0,0);

$rightArmGroup > rotate(-40,0,0);
$armLeft > rotate(20,0,0);

$head > rotate(0,20,0);

This is early stuff so the syntax might change, but it gives you an idea on how the system works. The Basic Modeler will probably be getting its own forum section just like Voxel Paint soon, as I am going to be using this system quite a bit for upcoming games. If you have any questions or suggestions for the format, you can leave them here, and stay tuned for more info!

#basicmodeler #basicmodel #voxelpaint #scroll3d
7mo ago
#MyColony2 #VoxelPaint #VoxelModel #CommunityContents #MagicaVoxel #Scroll3D

HELLO GUYS!

Some months ago, inside the secret lab in the deep mountains.... Wait, wrong script.
Just a few monthes ago, our dev @bastecklein got hands onto creating a (sort of) next generation engine for upcoming games of Ape Apps. With some computer magic and pretty much hard efforts, the brand new engine Scroll3D was born, a new engine comes with elevation in terms of dimensions, from 2D to 3D.
The detailed story about creation of Scroll3D can be found in this post.


The currently under development My Colony 2 (MC2) is created using Scroll3D engine. So how it would look like? Here are some demonstrations from the recent in game footage.



Currently, the Scroll3D engine is capable of the followings, compared to the older Scroll2D engine:
  • More realistic light rendering.
  • Light emitting objects!
  • A better representation of height and elevation.
  • Diagonal movement of objects.
  • 3 dimensional details for objects.
You can see the 3D models are very blocky in shape. This style is called Voxel, which every model are built up block by block. In other words, you can say it is low pixel graphics but it is in 3D.
The reason bastecklein adopted this style is because voxel models are generally easy to make. This is a good thing for people who would like to contribute to the graphical designs of game objects in game development, or create mods for the games - that is also one of the major features of My Colony 2.

Games using Scroll3D engine, including My Colony 2, use .vpp files for object graphics in the game. So how you can create the voxel models?

Bastecklein has also created another app for creating voxel models in .vpp format - Voxel Paint.
This is a dedicated app for creating .vpp models for any Ape Apps games using Scroll3D engine. A simple and easy-to-use app, it allows you to create simple, small voxel models. More importantly, it is available on many platforms, from your desktop computer to your mobile devices.
You can try out the app a bit on the embed window above.

Voxel Paint can work in conjunction with another popular, totally free open source software that is also for creating voxel models, MagicaVoxel. MagicaVoxel, compared to Voxel Paint, has more convenient and advanced tools that can help making of voxel models easier, especially when you're trying to create larger models that would take days to make on Voxel Paint. However, it is so far only available on PC devices.
This is their official website where you will find the latest download version, and their Github page: https://ephtracy.github.io/
Models created using MagicaVoxel is in format of .vox, this format cannot be used in My Colony 2, it requires conversion in Voxel Paint using the Import .vox file function and then save it as usable .vpp files.
This is a screenshot of the user interface.


At this moment, the standard unit of a tile in Scroll3D engine is 16×16 voxels. Hence, when you're creating voxel models, please set canvas size/base area parameters as multiples of 16 (16×16, 32×32, 48×48, etc.) for proper designs.


Any voxel models in .vpp format you have created can be submitted on the Ape Apps forums, which upon submission of the post/comment the .vpp model preview can be rendered.


Just a few hours before this post, My Colony 2 reached v0.2.0 with a few basic gameplay features implemented successfully. It is far from completion, and some buildings need better models. However, there is also plentiful of space for adding shiny new good stuff and refining the current details, this is where bastecklein will need more cool thoughts, amazing ideas and fine suggestions from us. Of course, better or new voxel models!

As always:
You can help by EXPANDING IT.
